Analog audio to digital transmitter solution development IC Chip

Analog audio to digital transmitter solution development IC Chip

  • High Light

    Fast Turn Printed Circuit Board Assembly

    ,

    CEM1 Printed Circuit Board Assembly Development

    ,

    CEM1 Prototype Pcb Assembly Solution

  • Type
    Motherboard Pcba
  • Place Of Origin
    China
  • Application
    Electronics Device
  • Surface Finishing
    HASL
  • Payment
    TT/Paypal
  • Place of Origin
    China
  • Brand Name
    Original
  • Certification
    CE
  • Minimum Order Quantity
    1000;(1pcs for sample)
  • Price
    Negotiate
  • Packaging Details
    Carton Package
  • Delivery Time
    3-10 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10000000/Month

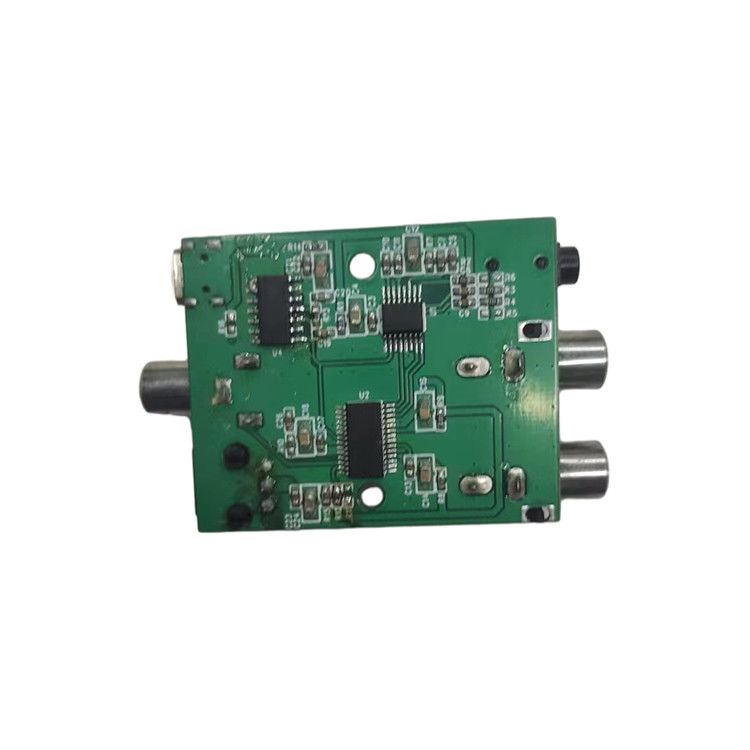

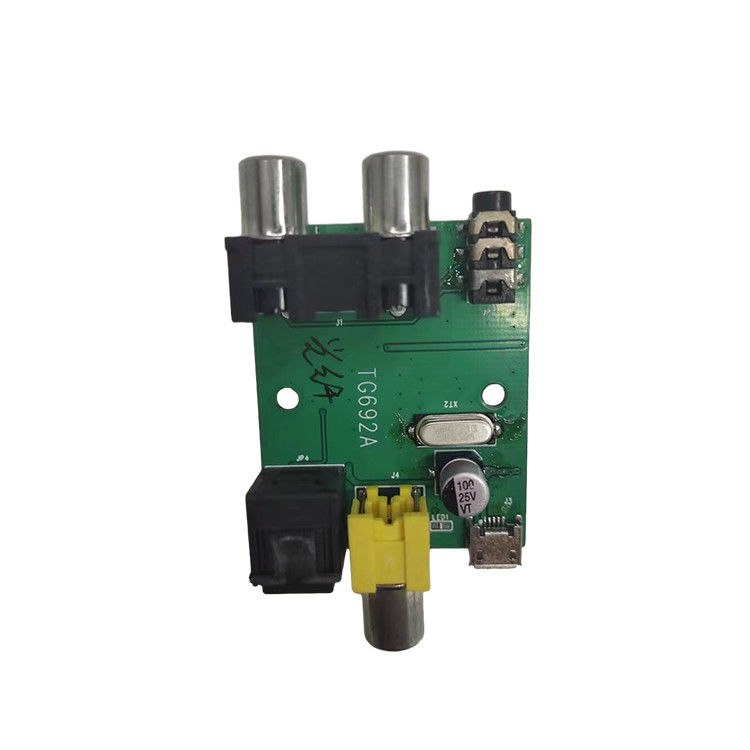

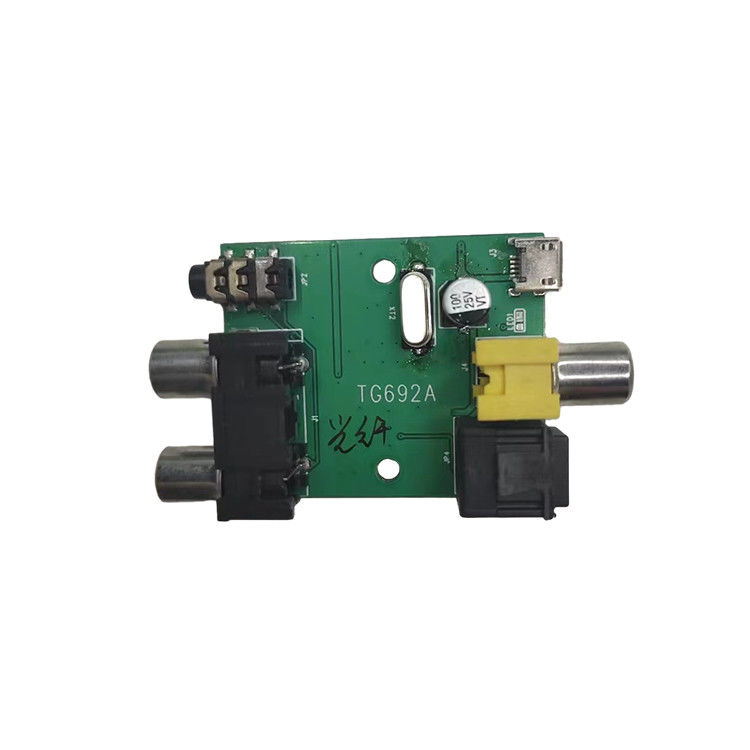

Analog audio to digital transmitter solution development IC Chip

Analog audio to digital transmitter solution development IC Chip







NX8406 is a single-chip CMOS device that transmits and decodes fiber optic and coaxial digital audio transmission outputs according to IEC60958, S/PDIF, EIAJ CP1201, or AES3 interface standards. The ability of NX8406 to perform comprehensive control through optional control ports in software mode or optional pins in hardware mode. The channel state data is assembled in a buffer, making it easy to read and access.

The low jitter clock recovery mechanism generates a very clean recovery clock from the incoming AES3 stream. Independent operation allows systems without microcontrollers to use dedicated output pin operations for channel state data

NX8406 adopts SSOP28 packaging target applications include A/V transmitters, CD-R, DVD transmitters, multimedia speakers, digital mixing consoles, special effects processors, set-top boxes, computers, and car audio systems


Features

◆ Supports EIAJ CP1201, IEC-60958, AES3 S/PDIF, and AES3 interface standards
◆+3.3V~5.0V power supply (VD)
◆+3.3V~5.0V power supply (VL)
◆ 3 digital audio inputs fiber optic and coaxial simultaneous transmission and output 32-192KHz sampling rate
◆ Mutibit Δ ∑ modulator
◆ 105dB dynamic range
◆ -90dB total harmonic distortion+signal-to-noise ratio
◆ Low clock jitter sensitivity
◆ Linear filtering output
