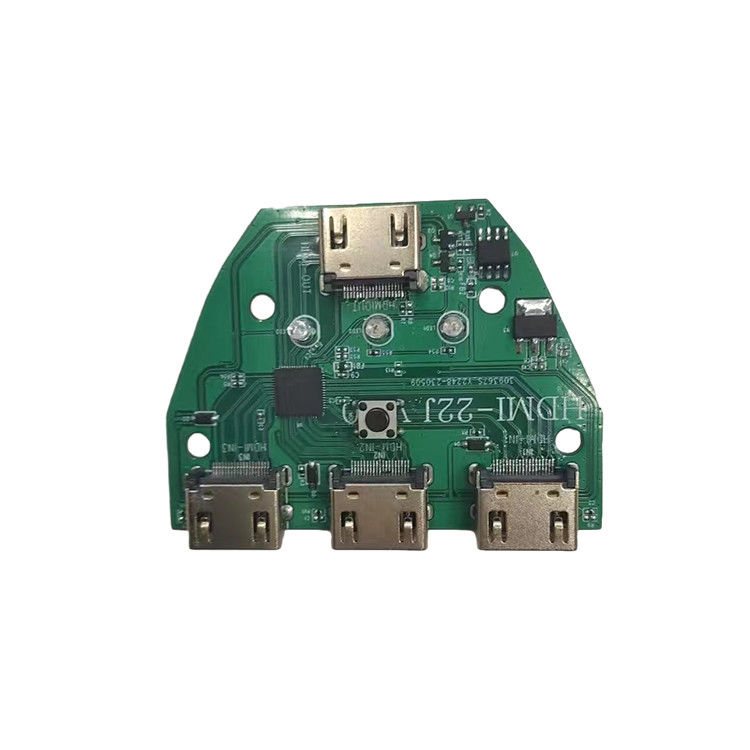

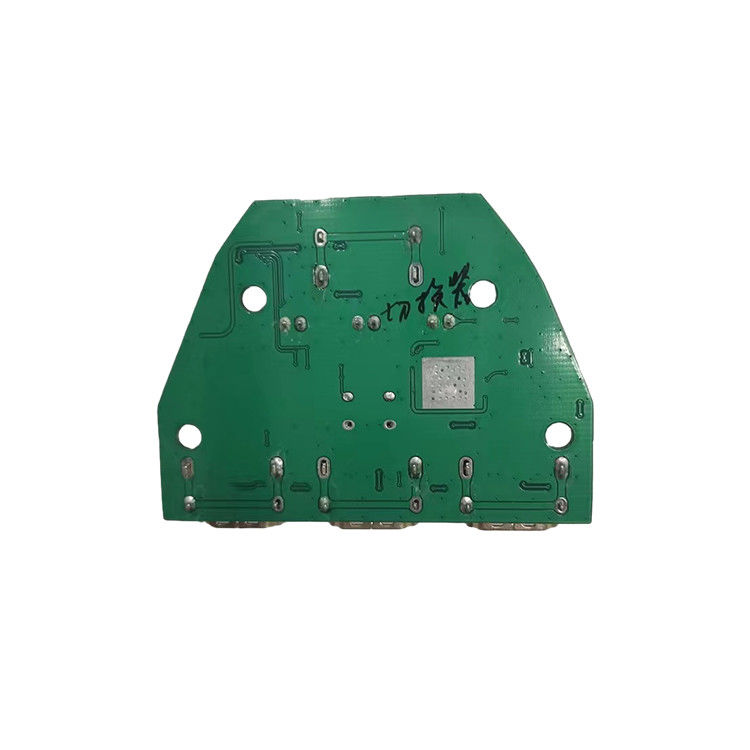

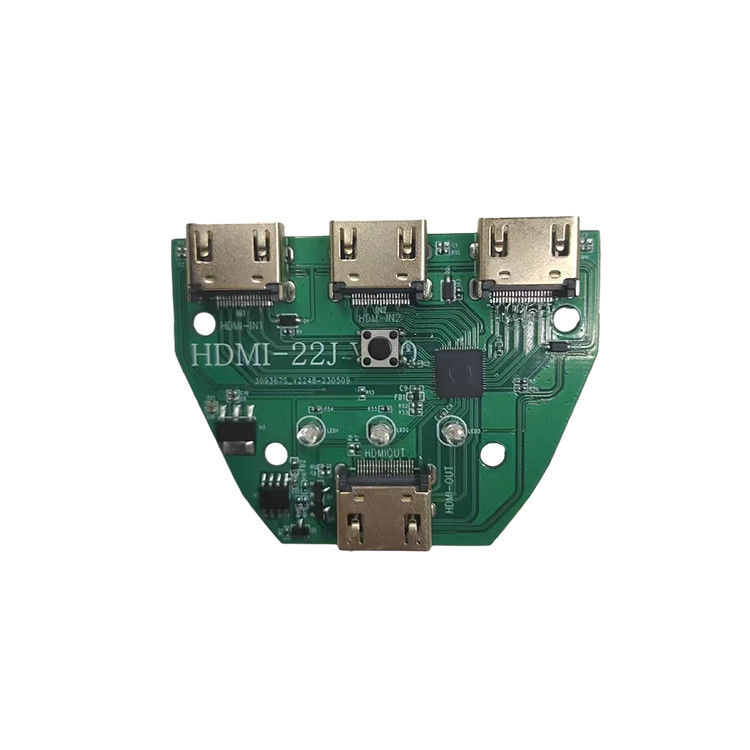

HDMI/DVI video switcher solution development PCBA
X3302 is a 3-port HDMI/DVI video switcher based on support for RX side ODT and management circuits
High resolution video networks according to HDMI 1.4 and DVI 1.0 specifications. Multiple HDMI/DVI ports allow consumers to connect various HDMI/DVI signal sources to their HDTV.
Integrated with HPD switch, DDC switch, and+5V power indicator light on
The NX3302 video switcher greatly reduces costs and simplifies manufacturing processes by selecting a single display source/receiver connection detection from three receiver ports, enabling flexible system management of HDMI/DVI signals and generating fully compatible HDMI/DVI audio/video outputs, fully compliant with HDMI/DVI specifications for DDC and HPD switching.
Low jitter technology
The NX3302 integrates DDC switches, HPD switches, and RX side ODT to enhance performance, reduce
manufacturing costs, and simplify wiring on the system motherboard.
Support I2C control
Features
●Power supply voltage 3.3V ± 10%
●DDC interface with withstand voltage of 5V
●Compatible with HDMI 1.4/DVI 1.0
● Supports data rates up to 3.4Gbps
● Supports HDCP
