HDMI/DVI video switcher solution development IC Chip

HDMI/DVI video switcher solution development IC Chip

  • High Light

    Electronic Components Smt Pcb Assembly

    ,

    Smt Pcb Assembly Pcba

    ,

    Pcba Printed Board Assembly

  • Type
    Motherboard Pcba
  • Place Of Origin
    China
  • Application
    Electronics Device
  • Surface Finishing
    HASL
  • Payment
    TT/Paypal
  • Solder Mask Color
    Blue.green.red.black.white.etc
  • Place of Origin
    China
  • Brand Name
    Original
  • Certification
    CE
  • Minimum Order Quantity
    1000;(1pcs for sample)
  • Price
    Negotiate
  • Packaging Details
    Carton Package
  • Delivery Time
    5-10 Days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10000000/Month

HDMI/DVI video switcher solution development IC Chip

HDMI/DVI video switcher solution development IC Chip

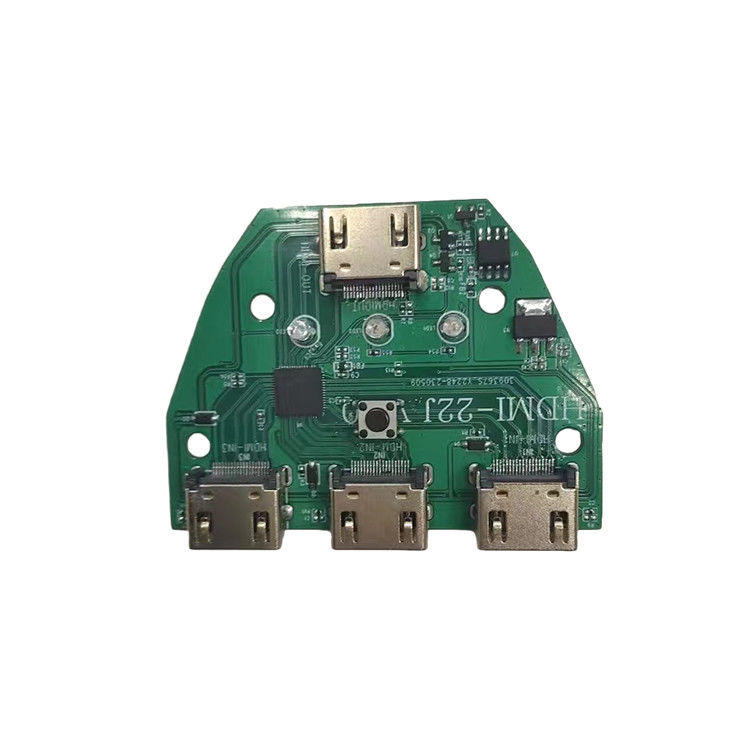

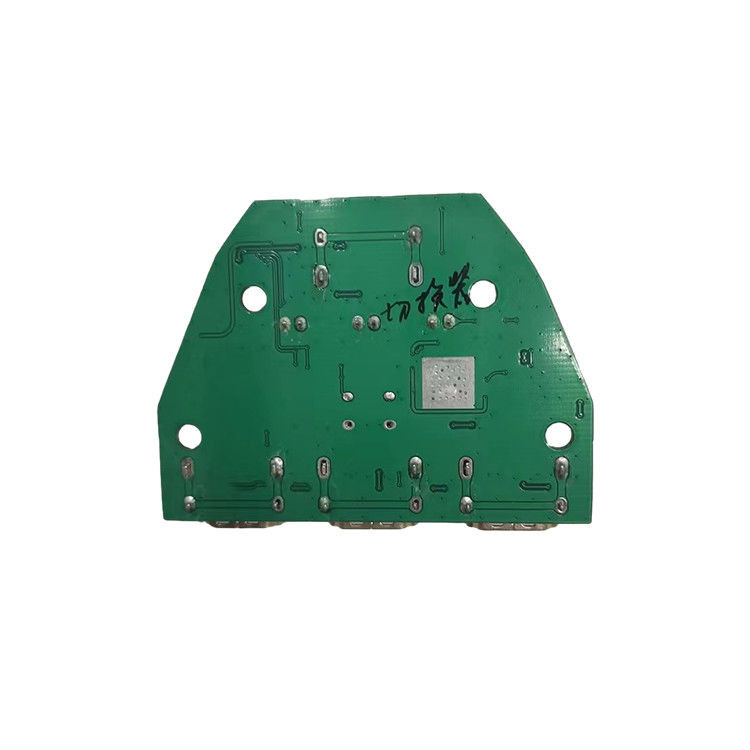

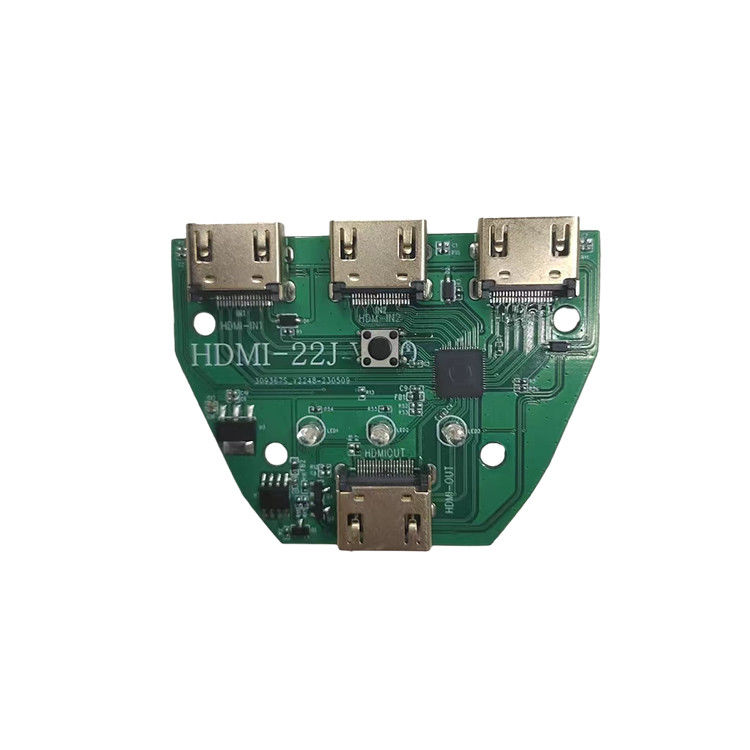

X3302 is a 3-port HDMI/DVI video switcher based on support for RX side ODT and management circuits
High resolution video networks according to HDMI 1.4 and DVI 1.0 specifications. Multiple HDMI/DVI ports allow consumers to connect various HDMI/DVI signal sources to their HDTV

Integrated with HPD switch, DDC switch, and+5V power indicator light on

The NX3302 video switcher greatly reduces costs and simplifies manufacturing processes by selecting a single display source/receiver connection detection from three receiver ports, enabling flexible system management of HDMI/DVI signals and generating fully compatible HDMI/DVI audio/video outputs, fully compliant with HDMI/DVI specifications for DDC and HPD switching.




Low jitter technology



The NX3302 integrates DDC switches, HPD switches, and RX side ODT to enhance performance, reduce
manufacturing costs, and simplify wiring on the system motherboard.
Support I2C control


Features

●Power supply voltage 3.3V ± 10%
●DDC interface with withstand voltage of 5V
●Compatible with HDMI 1.4/DVI 1.0
● Supports data rates up to 3.4Gbps
● Supports HDCP



HDMI/DVI video switcher solution development IC Chip 0HDMI/DVI video switcher solution development IC Chip 1HDMI/DVI video switcher solution development IC Chip 2HDMI/DVI video switcher solution development IC Chip 3
